Kubernetes Loop

Posted on by Malinda RathnayakeLeave a Comment on Kubernetes Loop

I’ve been diving deep into systems architecture lately, specifically Kubernetes

Strip away the UIs, the YAML, and the ceremony, and Kubernetes boils down to:

A very stubborn event driven collection of control loops

aka the reconciliation (Control) loop, and everything I read is calling this the “gold standard” for distributed control planes.

Because it decomposes the control plane into many small, independent loops, each continuously correcting drift rather than trying to execute perfect one-shot workflows. these loops are triggered by events or state changes, but what they do is determined by the the spec. vs observed state (status)

Now we have both:

  • spec: desired state
  • status: observed state

Kubernetes lives in that gap.

When spec and status match, everything’s quiet. When they don’t, something wakes up to ensure current state matches the declared state.

The Architecture of Trust

In Kubernetes, they don’t coordinate via direct peer-to-peer orchestration; They coordinate by writing to and watching one shared “state.”

That state lives behind the API server, and the API server validates it and persists it into etcd.

Role of the API server

The API server is the front door to the cluster’s shared truth: it’s the only place that can accept, validate, and persist declared intent as Kubernetes API objects (metadata/spec/status).

When you install a CRD, you’re extending the API itself with a new type (a new endpoint) or a schema the API server can validate against

When we use kubectl apply (or any client) to submit YAML/JSON to the API server, the API server validates it (built-in rules, CRD OpenAPI v3 schema / CEL rules, and potentially admission webhooks) and rejects invalid objects before they’re stored.

If the request passes validation, the API server persists the object into etcd (the whole API object, not just “intent”), and controllers/operators then watch that stored state and do the reconciliation work to make reality match it.

Once stored, controllers/operators (loops) watch those objects and run reconciliation to push the real world toward what’s declared.

it turns out In practice, most controllers don’t act directly on raw watch events, they consume changes through informer caches and queue work onto a rate-limited workqueue. They also often watch related/owned resources (secondary watches), not just the primary object, to stay convergent.

spec is often user-authored as discussed above, but it isn’t exclusively human-written, the scheduler and some controllers also update parts of it (e.g., scheduling decisions/bindings and defaulting).

Role of etcd cluster

etcd is the control plane’s durable record of “the authoritative reference for what the cluster believes that should exist and what it currently reports.”

If an intent (an API object) isn’t in etcd, controllers can’t converge on it—because there’s nothing recorded to reconcile toward

This makes the system inherently self-healing because it trusts the declared state and keeps trying to morph the world to match until those two align.

One tidbit worth noting:

In production, Nodes, runtimes, cloud load balancers can drift independently. Controllers treat those systems as observed state, and they keep measuring reality against what the API says should exist.

How the Loop Actually Works

 Kubernetes isn’t one loop. It’s a bunch of loops(controllers) that all behave the same way:

  • read desired state (what the API says should exist)
  • observe actual state (what’s really happening)
  • calculate the diff
  • push reality toward the spec



As an example, let’s look at a simple nginx workload deployment

1) Intent (Desired State)

To Deploy the Nginx workload. You run:

kubectl apply -f nginx.yaml



The API server validates the object (and its schema, if it’s a CRD-backed type) and writes it into etcd.

At that point, Kubernetes has only recorded your intent. Nothing has “deployed” yet in the physical sense. The cluster has simply accepted:

“This is what the world should look like.”

2) Watch (The Trigger)

Controllers and schedulers aren’t polling the cluster like a bash script with a sleep 10.

They watch the API server.

When desired state changes, the loop responsible for it wakes up, runs through its logic, and acts:

“New desired state: someone wants an Nginx Pod.”

watches aren’t gospel. Events can arrive twice, late, or never, and your controller still has to converge. Controllers use list+watch patterns with periodic resync as a safety net. The point isn’t perfect signals it’s building a loop that stays correct under imperfect signals.

Controllers also don’t spin constantly they queue work. Events enqueue object keys; workers dequeue and reconcile; failures requeue with backoff. This keeps one bad object from melting the control plane.

3) Reconcile (Close the Gap)

Here’s the mental map that made sense to me:

Kubernetes is a set of level-triggered control loops. You declare desired state in the API, and independent loops keep working until the real world matches what you asked for.

  • Controllers (Deployment/ReplicaSet/etc.) watch the API for desired state and write more desired state.
    • Example: a Deployment creates/updates a ReplicaSet; a ReplicaSet creates/updates Pods.
  • The scheduler finds Pods with no node assigned and picks a node.
    • It considers resource requests, node capacity, taints/tolerations, node selectors, (anti)affinity, topology spread, and other constraints.
    • It records its decision by setting spec.nodeName on the Pod.
  • The kubelet on the chosen node notices “a Pod is assigned to me” and makes it real.
    • pulls images (if needed) via the container runtime (CRI)
    • sets up volumes/mounts (often via CSI)
    • triggers networking setup (CNI plugins do the actual wiring)
    • starts/monitors containers and reports status back to the API

Each component writes its state back into the API, and the next loop uses that as input. No single component “runs the whole workflow.”

One property makes this survivable: reconcile must be safe to repeat (idempotent). The loop might run once or a hundred times (retries, resyncs, restarts, duplicate/missed watch events), and it should still converge to the same end result.

if the desired state is already satisfied, reconcile should do nothing; if something is missing, it should fill the gap, without creating duplicates or making things worse.

When concurrent updates happen (two controllers might try to update the same object at the same time)

Kubernetes handles this with optimistic concurrency. Every object has a resourceVersion (what version of this object did you read?”). If you try to write an update using an older version, the API server rejects it (often as a conflict).

Then the flow is: re-fetch the latest object, apply your change again, and retry.

4) Status (Report Back)

Once the pod is actually running, status flows back into the API.

The Loop Doesn’t Protect You From Yourself

What if the declared state says to delete something critical like kube-proxy or a CNI component? The loop doesn’t have opinions. It just does what the spec says.

A few things keep this from being a constant disaster:

  • Control plane components are special. The API server, etcd, scheduler, controller-manager these usually run as static pods managed directly by kubelet, not through the API. The reconciliation loop can’t easily delete the thing running the reconciliation loop as long as its manifest exists on disk.
  • DaemonSets recreate pods. Delete a kube-proxy pod and the DaemonSet controller sees “desired: 1, actual: 0” and spins up a new one. You’d have to delete the DaemonSet itself.
  • RBAC limits who can do what. Most users can’t touch kube-system resources.
  • Admission controllers can reject bad changes before they hit etcd.

But at the end, if your source of truth says “delete this,” the system will try. The model assumes your declared state is correct. Garbage in, garbage out.

Why This Pattern Matters Outside Kubernetes

This pattern shows up anywhere you manage state over time.

Scripts are fine until they aren’t:

  • they assume the world didn’t change since last run
  • they fail halfway and leave junk behind
  • they encode “steps” instead of “truth”

A loop is simpler:

  • define the desired state
  • store it somewhere authoritative
  • continuously reconcile reality back to it

Ref

Kafka 3.8 with Zookeeper SASL_SCRAM

Posted on by Malinda RathnayakeLeave a Comment on Kafka 3.8 with Zookeeper SASL_SCRAM

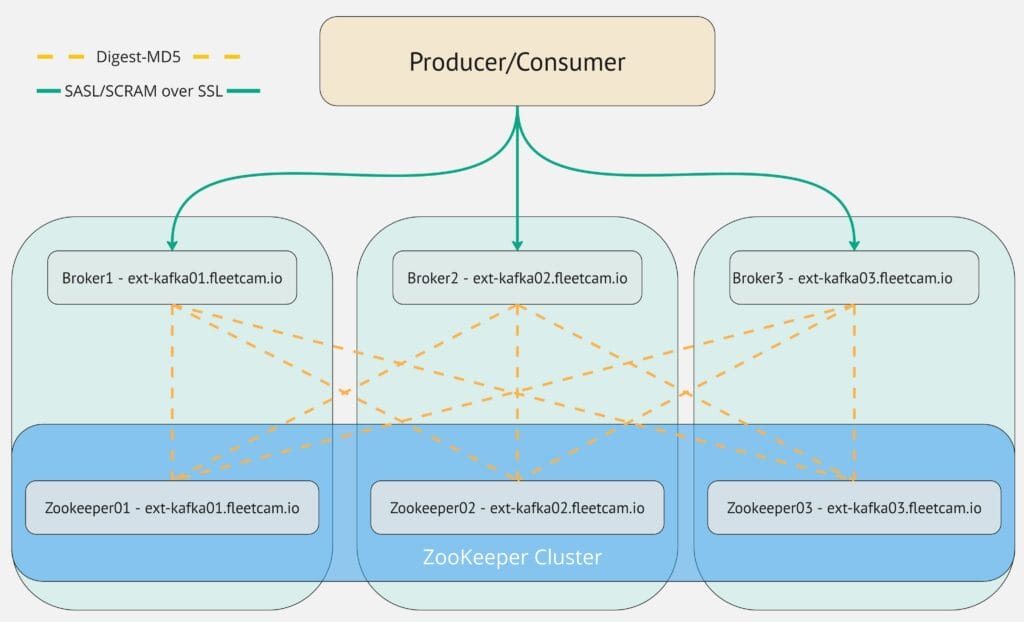

Transport Encryption Methods:

SASL/SSL (Solid Teal/Green Lines):

  1. Used for securing communication between producers/consumers and Kafka brokers.
    • SASL (Simple Authentication and Security Layer): Authenticates clients (producers/consumers) to brokers, using SCRAM .
    • SSL/TLS (Secure Sockets Layer/Transport Layer Security): Encrypts the data in transit, ensuring confidentiality and integrity during transmission.

Digest-MD5 (Dashed Yellow Lines):

  1. Secures communication between Kafka brokers and the Zookeeper cluster.
    • Digest-MD5: A challenge-response authentication mechanism providing basic encryption

Notes:

While functional, Digest-MD5 is an older algorithm. we opted for this to reduce complexity and the fact the zookeepers have issues with connecting with Brokers via SSL/TLS

  1. We need to test and switch over KRAFT Protocol, this removes the use of Zookeeper altogether
  2. Add IP ACLs for Zookeeper connections using firewalld to limit traffic between the nodes for replication

PKI and Certificate Signing

CA cert for local PKI,

We need to share this PEM file(without the private key) with the customer to authenticate

Internal applications the CA file must be used for authentication – Refer to the Configuration example documents

# Generate CA Key
openssl genrsa -out multicastbits_CA.key 4096
# Generate CA Certificate
openssl req -x509 -new -nodes -key multicastbits_CA.key -sha256 -days 3650 -out multicastbits_CA.crt -subj "/CN=multicastbits_CA"





Kafka Broker Certificates

# For Node1 - Repeat for other nodes

openssl req -new -nodes -out node1.csr -newkey rsa:2048 -keyout node1.key -subj "/CN=kafka01.multicastbits.com"

openssl x509 -req -CA multicastbits_CA.crt -CAkey multicastbits_CA.key -CAcreateserial -in node1.csr -out node1.crt -days 3650 -sha256





Create the kafka and zookeeper users

⚠️ Important: Do not skip this step. we need these users to setup Authentication in JaaS configuration

Before configuring the cluster with SSL and SASL, let’s start up the cluster without authentication and SSL to create the users. This allows us to:

  1. Verify basic dependencies and confirm the zookeeper and Kafka clusters are coming up without any issues “make sure the car starts”
  2. Create necessary user accounts for SCRAM
  3. Test for any inter-node communication issues (Blocked Ports 9092, 9093 ,2181 etc)



Here’s how to set up this initial configuration:

Zookeeper Configuration (No SSL or Auth)

Create the following file: /opt/kafka/kafka_2.13-3.8.0/config/zookeeper-NOSSL_AUTH.properties

# Zookeeper Configuration without Auth
dataDir=/Data_Disk/zookeeper/
clientPort=2181
initLimit=5
syncLimit=2
server.1=192.168.166.110:2888:3888
server.2=192.168.166.111:2888:3888
server.3=192.168.166.112:2888:3888



Kafka Broker Configuration (No SSL or Auth)

Create the following file: /opt/kafka/kafka_2.13-3.8.0/config/server-NOSSL_AUTH.properties

# Kafka Broker Configuration without Auth/SSL
broker.id=1
listeners=PLAINTEXT://kafka01.multicastbits.com:9092
advertised.listeners=PLAINTEXT://kafka01.multicastbits.com:9092
listener.security.protocol.map=PLAINTEXT:PLAINTEXT
zookeeper.connect=kafka01.multicastbits.com:2181,kafka02.multicastbits.com:2181,kafka03.multicastbits.com:2181



Open a new shell to the server Start Zookeeper:

/opt/kafka/kafka_2.13-3.8.0/bin/zookeeper-server-start.sh -daemon /opt/kafka/kafka_2.13-3.8.0/config/zookeeper-NOSSL_AUTH.properties



Open a new shell to start Kafka:

/opt/kafka/kafka_2.13-3.8.0/bin/kafka-server-start.sh -daemon /opt/kafka/kafka_2.13-3.8.0/config/server-NOSSL_AUTH.properties





Create the users:

Open a new shell and run the following commands:

kafka-configs.sh --bootstrap-server ext-kafka01.fleetcam.io:9092 --alter --add-config 'SCRAM-SHA-512=[password=zookeeper-password]' --entity-type users --entity-name ftszk

kafka-configs.sh --zookeeper ext-kafka01.fleetcam.io:2181 --alter --add-config 'SCRAM-SHA-512=[password=kafkaadmin-password]' --entity-type users --entity-name ftskafkaadminAfter the users are created without errors, press Ctrl+C to shut down the services we started earlier.





SASL_SSL configuration with SCRAM

Zookeeper configuration Notes

  • Zookeeper is configured with SASL/MD5 due to the SSL issues we faced during the initial setup
  • Zookeeper Traffic is isolated with in the Broker nodes to maintain security
dataDir=/Data_Disk/zookeeper/
clientPort=2181
initLimit=5
syncLimit=2
server.1=192.168.166.110:2888:3888
server.2=192.168.166.111:2888:3888
server.3=192.168.166.112:2888:3888
authProvider.1=org.apache.zookeeper.server.auth.SASLAuthenticationProvider
requireClientAuthScheme=sasl





/Data_Disk/zookeeper/myid file is updated corresponding to the zookeeper nodeID

cat /Data_Disk/zookeeper/myid
1





Jaas configuration

Create the Jaas configuration for zookeeper authentication, it has the follow this syntax

/opt/kafka/kafka_2.13-3.8.0/config/zookeeper-jaas.conf

Server {
   org.apache.zookeeper.server.auth.DigestLoginModule required
   user_multicastbitszk="zkpassword";
};



KafkaOPTS

KafkaOPTS Java varible need to be passed when the zookeeper is started to point to the correct JaaS file

export KAFKA_OPTS="-Djava.security.auth.login.config="Path to the zookeeper-jaas.conf"

export KAFKA_OPTS="-Djava.security.auth.login.config=/opt/kafka/kafka_2.13-3.8.0/config/zookeeper-jaas.conf"





There are few ways to handle this, you can add a script under profile.d or use a custom Zookeeper launch script for the systemd service

Systemd service

Create the launch shell script for Zookeeper

/opt/kafka/kafka_2.13-3.8.0/bin/zk-start.s

#!/bin/bash
#export the env variable
export KAFKA_OPTS="-Djava.security.auth.login.config=/opt/kafka/kafka_2.13-3.8.0/config/zookeeper-jaas.conf"
#Start the zookeeper service
/opt/kafka/kafka_2.13-3.8.0/bin/zookeeper-server-start.sh /opt/kafka/kafka_2.13-3.8.0/config/zookeeper.properties
#debug - launch config with no SSL - we need this for initial setup and debug
#/opt/kafka/kafka_2.13-3.8.0/bin/zookeeper-server-start.sh /opt/kafka/kafka_2.13-3.8.0/config/zookeeper-NOSSL_AUTH.properties





After you save the file

chomod +x /opt/kafka/kafka_2.13-3.8.0/bin/zk-start.s

sudo chown -R multicastbitskafka:multicastbitskafka /opt/kafka/kafka_2.13-3.8.0

Create the systemd service file

/etc/systemd/system/zookeeper.service

[Unit]
Description=Apache Zookeeper Service
After=network.target
[Service]
User=multicastbitskafka
Group=multicastbitskafka
ExecStart=/opt/kafka/kafka_2.13-3.8.0/bin/zk-start.sh
Restart=on-failure
[Install]



WantedBy=multi-user.target

After the file is saved, start the service

sudo systemctl daemon-reload.
sudo systemctl enable zookeeper
sudo systemctl start zookeeper



Kafka Broker configuration Notes

/opt/kafka/kafka_2.13-3.8.0/config/server.properties

broker.id=1
listeners=SASL_SSL://kafka01.multicastbits.com:9093
advertised.listeners=SASL_SSL://kafka01.multicastbits.com:9093
listener.security.protocol.map=SASL_SSL:SASL_SSL
authorizer.class.name=kafka.security.authorizer.AclAuthorizer
ssl.keystore.location=/opt/kafka/secrets/kafkanode1.keystore.jks
ssl.keystore.password=keystorePassword
ssl.truststore.location=/opt/kafka/secrets/kafkanode1.truststore.jks
ssl.truststore.password=truststorePassword
#SASL/SCRAM Authentication
sasl.enabled.mechanisms=SCRAM-SHA-256, SCRAM-SHA-512
sasl.mechanism.inter.broker.protocol=SCRAM-SHA-512
sasl.mechanism.client=SCRAM-SHA-512
security.inter.broker.protocol=SASL_SSL
#zookeeper
zookeeper.connect=kafka01.multicastbits.com:2181,kafka02.multicastbits.com:2181,kafka03.multicastbits.com:2181
zookeeper.sasl.client=true
zookeeper.sasl.clientconfig=ZookeeperClient



zookeeper connect options

Define the zookeeper servers the broker will connect to

zookeeper.connect=kafka01.multicastbits.com:2181,kafka02.multicastbits.com:2181,kafka03.multicastbits.com:2181

Enable SASL

zookeeper.sasl.client=true

Tell the broker to use the creds defined under ZookeeperClient section on the JaaS file used by the kafka service

zookeeper.sasl.clientconfig=ZookeeperClient

Broker and listener configuration

Define the broker id

broker.id=1

Define the servers listener name and port

listeners=SASL_SSL://kafka01.multicastbits.com:9093

Define the servers advertised listener name and port

advertised.listeners=SASL_SSL://kafka01.multicastbits.com:9093

Define the SASL_SSL for security protocol

listener.security.protocol.map=SASL_SSL:SASL_SSL

Enable ACLs

authorizer.class.name=kafka.security.authorizer.AclAuthorizer

Define the Java Keystores

ssl.keystore.location=/opt/kafka/secrets/kafkanode1.keystore.jks

ssl.keystore.password=keystorePassword

ssl.truststore.location=/opt/kafka/secrets/kafkanode1.truststore.jks

ssl.truststore.password=truststorePassword

Jaas configuration

/opt/kafka/kafka_2.13-3.8.0/config/kafka_server_jaas.conf

KafkaServer {
  org.apache.kafka.common.security.scram.ScramLoginModule required
  username="multicastbitskafkaadmin"
  password="kafkaadmin-password";
};
ZookeeperClient {
  org.apache.zookeeper.server.auth.DigestLoginModule required
  username="multicastbitszk"
  password="Zookeeper_password";
};





SASL and SCRAM configuration Notes

Enable SASL SCRAM for authentication

org.apache.kafka.common.security.scram.ScramLoginModule required

Use MD5 for Zookeeper authentication

org.apache.zookeeper.server.auth.DigestLoginModule required

KafkaOPTS

KafkaOPTS Java variable need to be passed and must point to the correct JaaS file, when the kafka service is started

export KAFKA_OPTS="-Djava.security.auth.login.config=/opt/kafka/kafka_2.13-3.8.0/config/kafka_server_jaas.conf"





Systemd service

Create the launch shell script for kafka

/opt/kafka/kafka_2.13-3.8.0/bin/multicastbitskafka-server-start.sh

#!/bin/bash
#export the env variable
export KAFKA_OPTS="-Djava.security.auth.login.config=/opt/kafka/kafka_2.13-3.8.0/config/kafka_server_jaas.conf"
#Start the kafka service
/opt/kafka/kafka_2.13-3.8.0/bin/kafka-server-start.sh /opt/kafka/kafka_2.13-3.8.0/config/server.properties
#debug - launch config with no SSL - we need this for initial setup and debug
#/opt/kafka/kafka_2.13-3.8.0/bin/kafka-server-start.sh /opt/kafka/kafka_2.13-3.8.0/config/server-NOSSL_AUTH.properties





Create the systemd service

/etc/systemd/system/kafka.service

[Unit]
Description=Apache Kafka Broker Service
After=network.target zookeeper.service
[Service]
User=multicastbitskafka
Group=multicastbitskafka
ExecStart=/opt/kafka/kafka_2.13-3.8.0/bin/multicastbitskafka-server-start.sh
Restart=on-failure
[Install]
WantedBy=multi-user.target





Connect authenticate and use Kafka CLI tools

Requirements

  • multicastbitsadmin.keystore.jks
  • multicastbitsadmin.truststore.jks
  • WSL2 with java-11-openjdk-devel wget nano
  • Kafka 3.8 folder extracted locally

Setup your environment

  • Setup WSL2

You can use any Linux environment with JDK17 or 11

  • install dependencies

dnf install -y wget nano java-11-openjdk-devel

Download Kafka and extract it (in going to extract it to the home DIR under kafka)

# 1. Download Kafka (Choose a version compatible with your server)
wget https://dlcdn.apache.org/kafka/3.8.0/kafka_2.13-3.8.0.tgz
# 2. Extract
tar xzf kafka_2.13-3.8.0.tgz



Copy the jks files (You should generate them with the CA JKS, or use one from one of the nodes) to ~/

cp multicastbitsadmin.keystore.jks ~/



cp multicastbitsadmin.truststore.jks ~/

Create your admin client properties file

change the path to fit your setup

nano ~/kafka-adminclient.properties

# Security protocol and SASL/SSL configuration
security.protocol=SASL_SSL
sasl.mechanism=SCRAM-SHA-512
# SSL Configuration
ssl.keystore.location=/opt/kafka/secrets/multicastbitsadmin.keystore.jks
ssl.keystore.password=keystorepw
ssl.truststore.location=/opt/kafka/secrets/multicastbitsadmin.truststore.jks
ssl.truststore.password=truststorepw
# SASL Configuration
sasl.jaas.config=org.apache.kafka.common.security.scram.ScramLoginModule required
    username="#youradminUser#"
		password="#your-admin-PW#";





Create the JaaS file for the admin client

nano ~/kafka_client_jaas.conf

Some kafka-cli tools still look for the jaas.conf under KAFKA_OPTS environment variable

KafkaClient {
  org.apache.kafka.common.security.scram.ScramLoginModule required
  username="#youradminUser#"
  password="#your-admin-PW#";
};



Export the Kafka environment variables

export KAFKA_HOME=/opt/kafka/kafka_2.13-3.8.0
export PATH=$PATH:$KAFKA_HOME/bin
export JAVA_HOME=$(dirname $(dirname $(readlink -f $(which java))))
export KAFKA_OPTS="-Djava.security.auth.login.config=~/kafka_client_jaas.conf"
source ~/.bashrc





Kafka CLI Usage Examples

Create a user

kafka-configs.sh --bootstrap-server kafka01.multicastbits.com:9093 --alter --add-config 'SCRAM-SHA-512=[password=#password#]' --entity-type users --entity-name %username%--command-config ~/kafka-adminclient.properties





Create a topic

kafka-topics.sh --bootstrap-server kafka01.multicastbits.com:9093 --create --topic %topicname% --partitions 10 --replication-factor 3 --command-config ~/kafka-adminclient.properties





Create ACLs

External customer user with READ DESCRIBE privileges to a single topic

kafka-acls.sh --bootstrap-server kafka01.multicastbits.com:9093
  --command-config ~/kafka-adminclient.properties
  --add --allow-principal User:customer-user01
  --operation READ --operation DESCRIBE --topic Customer_topic





Troubleshooting

Here are some common issues you might encounter when setting up and using Kafka with SASL_SCRAM authentication, along with their solutions:

1. Connection refused errors

Issue: Clients unable to connect to Kafka brokers.

Solution:

  • Verify that the Kafka brokers are running and listening on the correct ports.
  • Check firewall settings to ensure the Kafka ports are open and accessible.
  • Confirm that the bootstrap server addresses in client configurations are correct.

2. Authentication failures

Issue: Clients fail to authenticate with Kafka brokers.

Solution:

  • Double-check username and password in the JAAS configuration file.
  • Ensure the SCRAM credentials are properly set up on the Kafka brokers.
  • Verify that the correct SASL mechanism (SCRAM-SHA-512) is specified in client configurations.

3. SSL/TLS certificate issues

Issue: SSL handshake failures or certificate validation errors.

Solution:

  • Confirm that the keystore and truststore files are correctly referenced in configurations.
  • Verify that the certificates in the truststore are up-to-date and not expired.
  • Ensure that the hostname in the certificate matches the broker’s advertised listener.

4. Zookeeper connection issues

Issue: Kafka brokers unable to connect to Zookeeper ensemble.

Solution:

  • Verify Zookeeper connection string in Kafka broker configurations.
  • Ensure Zookeeper servers are running and accessible and the ports are open
  • Check Zookeeper client authentication settings in JAAS configuration file
